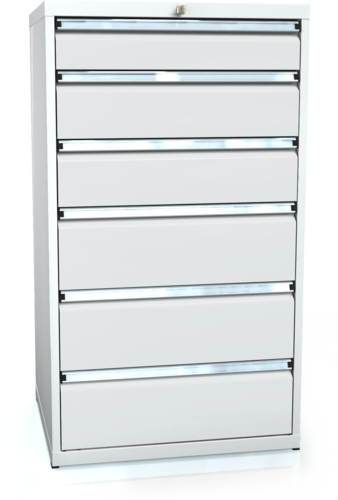

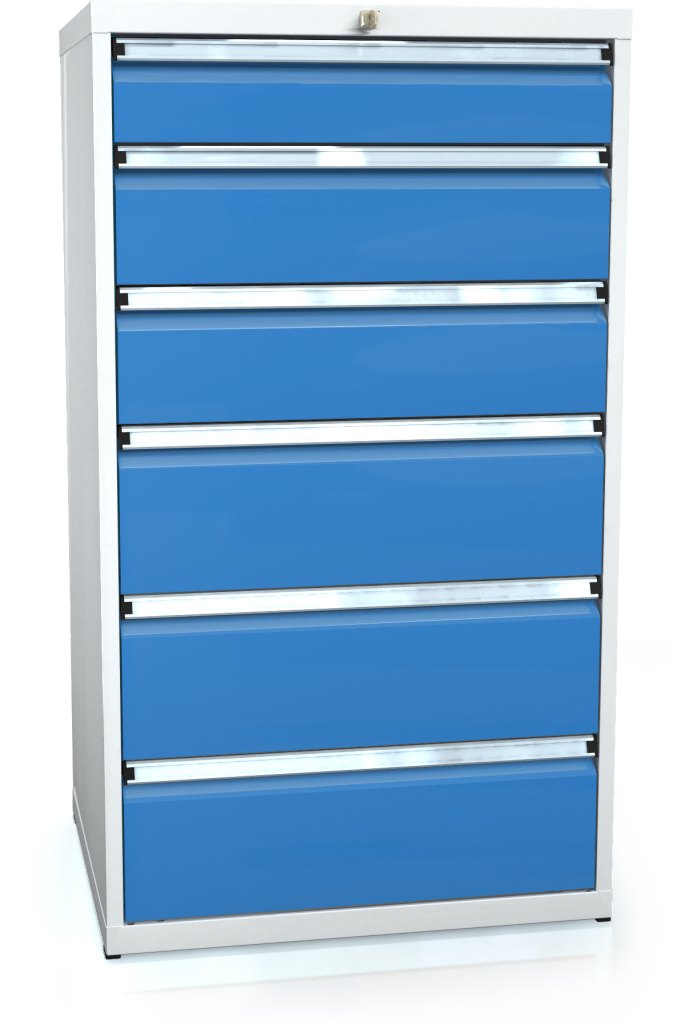

Drawer cabinet 1240 x 710 x 600 - 6x drawers
Product code: DKP 3627 26U 6AB C1 7035 5012

The following types of product are available:

Colour shades of KLASIK chart
Drawer colour shades of KLASIK chart
In stock
Ask for project price
Ask

Drawer 3627E, sliding Fulterer 100%, max. load 65 kg. The body is furnished with a central locking system (cylindrical lock) with an integrated function which blocks the opening of several drawers together - it ́s a protection against overturning. The bottom part of the body is furnished with slots for anchoring to the floor. We recommend anchoring the cabinet in case it will be loaded to the limit of its maximum carrying capacity.

Details

Detailed Description

Assembly mouldings on the inner part of bodies allow installing drawers in 1U = 44,45 mm raster.
Into the body there can be mounted a holder of 19” rack accessories, a stopping device, a leading out moulding for cables and hoses and an output slot. You can also install a panel with slots for cables.



Are you considering the idea of placing a parcel box?

WRITE TO US



The drawers are guided in massive slide-rails

for installing of metal divider sets



Locking systems

● Cylindrical lock C1, 4000 combinations, a master key option.

● Turning security padlock cap OB1 is intended for a padlock of stirrup diameter 6 - 8 mm.

Locking system consists of a bolt with a safety hook which increases the resistance of the doors against violent breaking.

Extra charge equipment:

○ Online electronic systems

○ Chip electronic lock







Surface treatment

The input material is steel plate or steel profiles. In painting line IDEAL-LINE there is applied
a Fe-phosphate layer and the segments are dried. It ensures a better adhesion of the powder coat to the base coat. The powder coat of the desired shade is then applied onto the segments in electrostatic field and then it is hardened at temperature of approx. 180 °C. The final coat is hygienic, flexible and scratch resistant.

Specification points

  • The drawers are guided in massive slide-rails Fulterer with four ball bearings. These slide-rails are characteristic by an easy and silent running.
  • The drawers are furnished with a comfort aluminium handle with an installed holder of a safety pin DKP PVZ and with a groove for a label with drawer ́s contents.
  • The inner parts of the drawers are pressed and grooved for installing of metal divider sets. Groove spacing is 1E = 17 mm.
  • Useable drawer plan is 604 x 451 mm.




Technical specification

Workshop Cabinets
Product line PROFI
Basic division a) sockets
Internal dimension of the drawer 3627E (604 x 451 mm)
Body height f) 26U (1240 mm)
Storage of drawers b) 100% extension Fulterer, load capacity 65 Kg
Upper structure painted sheet metal
Substructure a) base socle 40 mm
