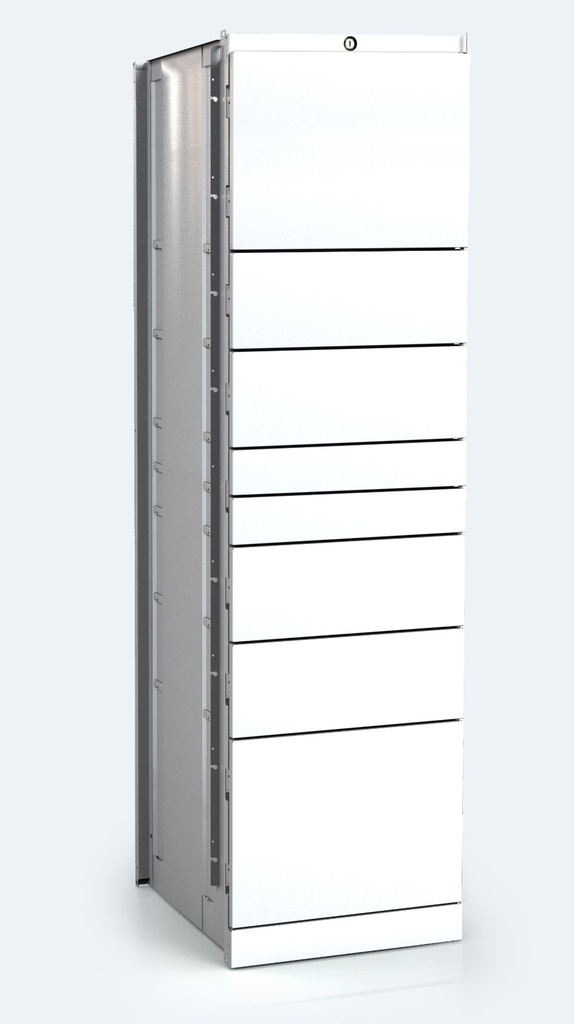

Intdoor locker unit of the package delivery station, 8x doors, electronic locks with a position sensor, LED lighting of the compartment interior, electronic locks and connecting cables, mechanical emergency opening system, height-adjustable legs with anchoring and covering elements, prepared for installation of the roof and side panels.
For an additional fee, there are versions available with an option of powering mobile devices stored in the box in 230V, or USB-A, or USB-C versions
 |
|
Detailed Description
|
Intdoor delivery stations are used for contactless automatic package delivery or return. The modular system allows the connection of various variants of locker and terminal units into sets of any size. Thanks to this, customers can configure the package delivery station with the required number of boxes with the storage volume size to exactly meet their needs. The cabinet body is made of profiled sheet steel painted with heat resistant powder coating. |
Do you have an idea in mind for furnishing the building?WRITE TO US |
|
|
|
|
| The front of the locker unit is reinforced, and provides a stable base for mounting doors and electronic locks. The compartment interior is equipped with LED lighting. | The door has a durable double-plated frame, and is fitted with an opening angle limiter and a drip edge for water drainage. |
|
|
|
|
|
In the upper part of the body, there is space for the electronic control system and channels for connecting cable harnesses.
|
The locker unit is fitted with massive height-adjustable legs with anchor plates. The height adjustability range is 55 mm. The space under the body is fitted with a sliding cover. On request, LED lighting of the plinth area. |
Specification points
- Durable design for outdoor applications, mechanical features against water leakage
- Profiled reinforcement of the cabinet body at the points of mounting of the doors, locks and limiters
- Durable double-plated door frame, with an opening angle limiter approximately 100 °
- Standard right-handed door mounting (left-handed door mounting on request)
- 10” touch display
- LED lighting of the box interior
- LED lighting of the exterior payment terminal area
- Electronic locks with automatic door opening and a position sensor
- Emergency mechanical lock release system
- Space for the installation of electronics and cables
- Height-adjustable legs
- Anchoring elements
- Preparation for interconnection of locker units in rows
- Preparation for the installation of roof panels
- Preparation for mounting side panels
- Possibility of additional expansion of the module set
- On request, LED lighting of the plinth area
- On request, it is possible to mount a laminated chipboard door
Technical specification
| features: | |
| Unit type | 1) package delivery |
| Modul | 530 mm |
