Product code: ABE FV 19 K0001

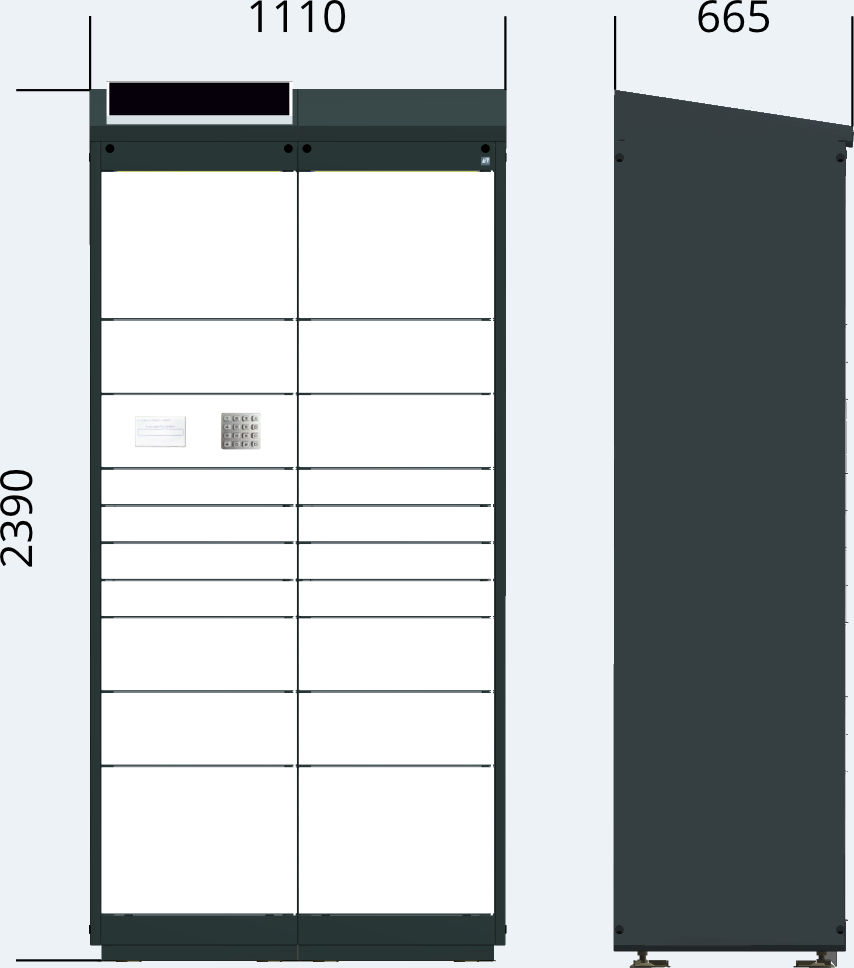

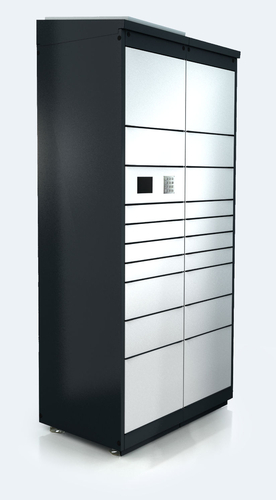

Parcel delivery unit with 19 boxes for outdoor use. The set is made up of two cabinet units fitted with slanted tops, side cover panels, and a height-adjustable system for anchoring to the installation base.
Power supply is solved by means of an accumulator and a solar panel.
Communication with the delivery unit is possible via Bluetooth connection with the user’s or courier’s smartphone.
Alternatively, it is possible to use a hardware keyboard with operating instructions directly on the display of the cabinet unit. The electronic system has low energy demand.
 |
|
Specification points
- Outdoor design
- 19 delivery boxes + 1 terminal box
- Slanted top with a 15° slope, possibility of installation with a forward or backward tilt
- Solar panel
- Accumulator
- Low-energy electronic control unit with Bluetooth and LTE communication
- Monochromatic display and hardware keyboard
- Electronic locks
- Mechanical emergency opening system
- Height-adjustable system to level the unevenness of the base
- Anchoring system
- Retractable cover panels to cover the gap between the plinth and the base
- 230V supply and Ethernet connection not required
Technical specification
| Parcel lockers | |
| Unit type | 2) package delivery - assemblies |
| Slanted top | 3) Slanted top with solar panel |
| Modul | 530 mm |
| Recommended assemblies | 3) Terminalless island (mobile app control) |
