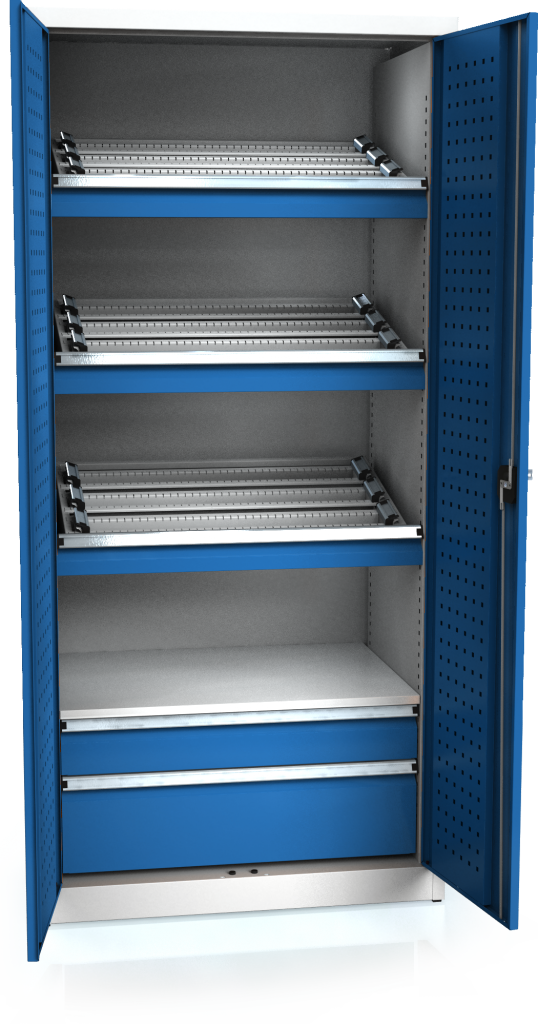

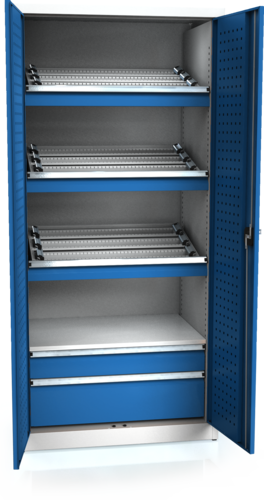

System cupboard PROFI 1950 x 920 x 600 - shelves-drawers-ejecting frame

Specification points

• The body is characterized by a solid welded construction and it is furnished with a height adjustment and with slots for anchoring to the floor or to the wall. The body ́s carrying capacity is 400 - 800 kg.
• EUROPERFO® the inner part of doors is perforated in order to mount holders for tools.
• The doors are hinged on massive pivots, angle of opening is 110°. On their inner part there is a reinforcing element. Locking is solved by a turning padlock cap and a three-point locking mechanism.

• The ejecting frame is guided in top quality massive slide rails Fulterer. You can choose either a basic version (sliding 80%, max. load 90 kg) or versions with sliding 100% and max. load 65 or 180 kg. The supporting frame is furnished with a comfort aluminium handle with an option to insert a label.

• The drawers are guided in massive slide-rails Fulterer with four ball bearings. These slide-rails are characteristic by an easy and silent running. The drawers are furnished with a comfort aluminium handle with an installed holder of a safety pin DKP PVZ and with a groove for a label with drawer ́s contents. The inner parts of the drawers are pressed and grooved for installing of metal divider sets. Groove spacing is 1E = 17 mm. Useable drawer plan is 757 x 451 mm.

• The shelves have a surface carrying capacity 100 kg and are adjustable after 25 mm.

• The blocation of opening several drawers makes a protection against cupboard ́s overturning when several heavily weighted drawers are opened at the same time. This system is for an extra charge. As the first producer we offer this system for cupboards with wing doors.
• Damped closing can be ordered for an extra charge. It is a comfort device for drawers or for CNC ejecting frames.
