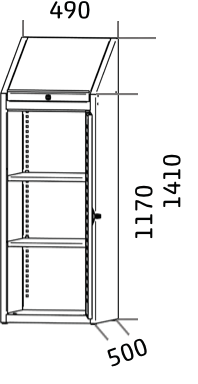

System cupboard UNI 1410 x 490 x 500. The body is characterized by a solid welded construction and it is furnished with a height adjustment and with slots for anchoring to the floor or to the wall.
Detailed Description

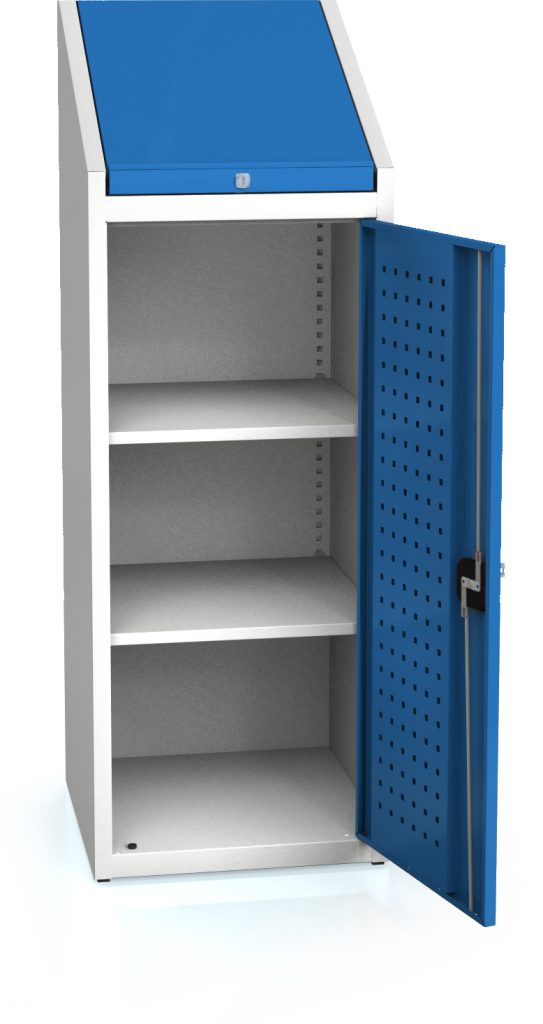

The cupboards for tools with a writing desk are in their upper part furnished with a slanted door. The door has in its bottom part a stop which makes a protection against falling pens and pencils. The space in the writing desk as well as the door placed in the cupboard ́s bottom part are locked by pair cylindrical locks. Both locks can be opened with a same key. The body ́s carrying capacity is 200 - 600 kg. The body is inside prepared for installation of shelves or supporting construction for installation of drawers. The doors are hinged on massive pivots, angle of opening is 110°. On their inner part there is a reinforcing element. Locking is solved by a turning padlock cap and a three-point locking mechanism. The shelves have a surface carrying capacity 80 kg and are adjustable after 25 mm.
Specification points
- The body is characterized by a solid welded construction and it is furnished with a height adjustment and with slots for anchoring to the floor or to the wall. The body ́s carrying capacity is 200 - 600 kg.
- EUROPERFO® the inner part of doors is perforated in order to mount holders for tools.
- The doors are hinged on massive pivots, angle of opening is 110°. On their inner part there is a reinforcing element. Locking is solved by a turning padlock cap and a three-point locking mechanism.
- The shelves have a surface carrying capacity 80 kg and are adjustable after 25 mm.
Technical specification
| Workshop Cabinets | |
| Product line | UNI |
| Upper structure | oblique |
| Cabinet height | 1410 |
| Cabinet width | 490 |
| Body design | Full back wall |
| Cabinet equipment | a) shelf |
