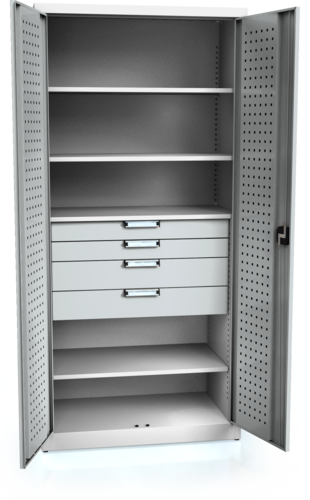

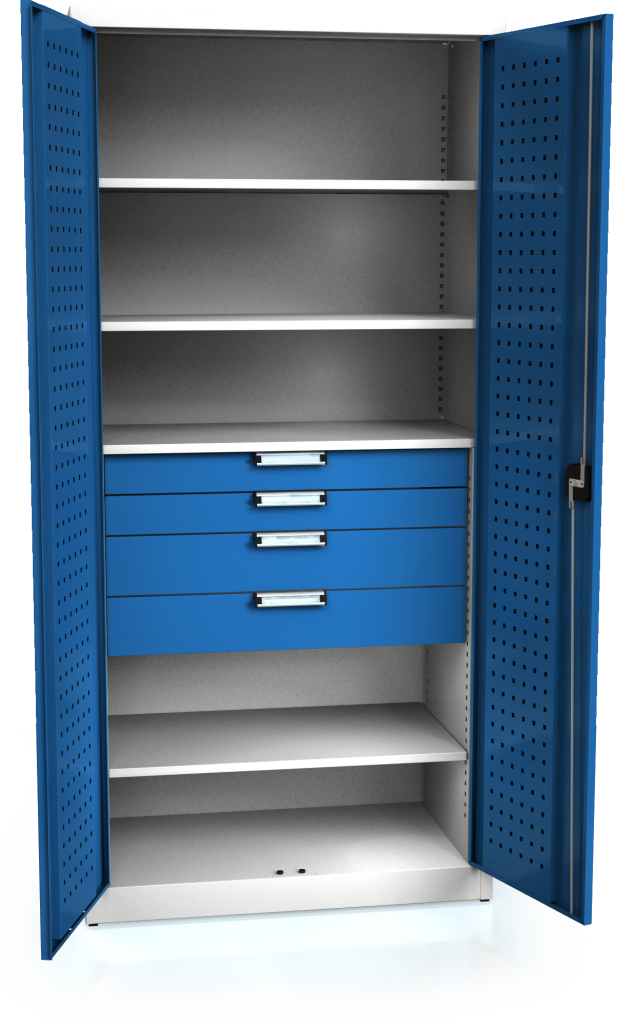

System cupboard UNI 1950 x 920 x 500. The body is characterized by a solid welded construction and it is furnished with a height adjustment and with slots for anchoring to the floor or to the wall.
Detailed Description
The body ́s carrying capacity is 200 - 600 kg. The body is inside prepared for installation of shelves or supporting construction for installation of drawers. The doors are hinged on massive pivots, angle of opening is 110°. On their inner part there is a reinforcing element. Locking is solved by a turning padlock cap and a three-point locking mechanism. The shelves have a surface carrying capacity 80 kg and are adjustable after 25 mm. The drawers in 4623 E and 2223 E version are offered in five heights. Their surface carrying capacity is 40 kg, sliding is 100%. Into the drawers there can be mounted divider sets to divide it transversaly.
Specification points
- The body is characterized by a solid welded construction and it is furnished with a height adjustment and with slots for anchoring to the floor or to the wall. The body ́s carrying capacity is 200 - 600 kg.
- EUROPERFO® the inner part of doors is perforated in order to mount holders for tools.
- The doors are hinged on massive pivots, angle of opening is 110°. On their inner part there is a reinforcing element. Locking is solved by a turning padlock cap and a three-point locking mechanism.
- The shelves have a surface carrying capacity 80 kg and are adjustable after 25 mm.
- The drawers in 4623 E and 2223 E version are offered in five heights. Their surface carrying capacity is 40 kg, sliding is 100%. Into the drawers there can be mounted divider sets to divide it transversaly.
Technical specification
| Workshop Cabinets | |
| Product line | UNI |
| Upper structure | straight |
| Cabinet height | 1950 |
| Cabinet width | 920 |
| Body design | Full back wall |
| Cabinet equipment | b) shelf + sockets |
| Storage of drawers | d) telescopic 100% extension load capacity 40 Kg |
